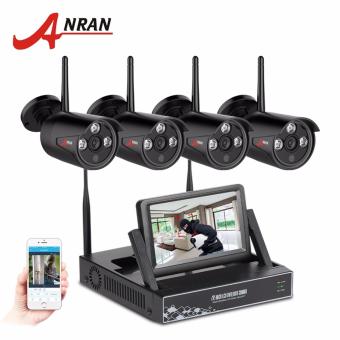

ANRAN 4CH Wifi Camera System HD 7 LCD Monitor NVR With 720P

Cek Harga dan spesifikasi ANRAN 4CH Wifi Camera System HD 7 LCD Monitor NVR With 720P. Detail produk dari ANRAN 4CH Wifi Camera System HD 7 LCD Monitor NVR With 720P Outdoor Waterproof Security IP Camera

Detail produk dari ANRAN 4CH Wifi Camera System HD 7 LCD Monitor NVR With 720P Outdoor Waterproof Security IP Camera Video Surveillance System

Camera
Processor: Hi3518E
Image Sensor: 1/4" Micron OV9712 CMOS Progressive Scan
Wireless Protocols: 802.11b/g/n, 150Mbps.
Infrared 3 Array IR Leds
IR Range 15m
Min. Illumination: Colour 0.1 Lux
B/W 0.01 Lux
Day& Night: Dual IR-cut filter auto switch
Max S/N Ratio: > 39.1dB
Lens
Lens: The default 3.6mm Lens
2.8mm 3.6mm 4mm 6mm 8mm 12mm
89.7 75.7 69.9 50 38.5 26.2
0-2M 0-4M 3-6M 5-10M 10-20M 20-35M
Video
Video Standard: H.264
Dual Stream: Yes
Max.Resolution: 1280*720
Bit Rate: 32 Kbps ~ 4 Mbps
Supports CBR / VBR
Frame Rate: 50Hz: 25fps (1280 x 720) ______ 25fps (640 x 480)
60Hz: 30fps (1280 x 720) ______ 30fps (640 x 480)
Image Settings: Brightness, Saturation, Contrast, Hue adjustable
Image Process: AE, AWB, ABF, ABLC,
Digital WDR, 3D-DNR
Image Orientation: Flip and Mirror
Privacy Mask: 4 Configurable regions
Title OSD: Supports Channel name, Date
Network
Alarm Trigger: Motion Detection
Alarm Way: Email Alarm
Protocols: P2P/ DHCP/ DDNS/ PPPoE/ E-Mail/ FTP etc.
Wireless Protocol: WIFI 802.11b/g/n 150Mbps
Interface
NET: 1 * RJ45 10M / 100M ethernet interface
Power: 1 * Ø5.5 RCA interface
General
Anti-thunder Level: Standard IEC61000-4-5
Operating Conditions: -30 C ~ 60 C
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC 10%
Power Consumption: 6W
Waterproof: IP66
Housing Material: Metal
Weight: 0.5kg



System
Model: K9504L-W
Main Processor: Hisilicon 3520 + Realtek RTL8196E + RTL8182ER
Operating System: Embedded LINUX
Preview: 1/4
Control Device: USB Mouse
Video & Record
Video Compression: H.264
Video Input: 4CH * 720P
Video Output: HDMI
1024x768, 1280x1024, 1366x768
1440x900, 1920x1080
Video Mode: Manual, Time, Motion, Alarm
Playback Mode: Real time, Routine, Event
Playback: 4CH * 720P
Interface
Video Output: 1 * HDMI
Network Protocol: UPnP/ SMTP/ PPPoE/ DHCP, FTP etc
Net Interface: 1 * RJ-45
USB Interface: 1 * USB2.0 Port
Hard Disk: 1 * SATA Port ( support ?4TB )
Other
Operating Conditions: -10 °c ~ 55 °c
Humidity 95% or less (non-condensing)
Power Supply: 12V/DC 3A
Power Consumption: <10W
Size: 257mm*240mm*45mm
Weight: 1.5kg

Spesifikasi dari ANRAN 4CH Wifi Camera System HD 7 LCD Monitor NVR With 720P

SKUAN890ELAAANUUPANID-24225528
English description

1-7

345789101011121314

15163

Camera
Processor: Hi3518E
Image Sensor: 1/4" Micron OV9712 CMOS Progressive Scan
Wireless Protocols: 802.11b/g/n, 150Mbps.
Infrared 3 Array IR Leds
IR Range 15m
Min. Illumination: Colour 0.1 Lux
B/W 0.01 Lux
Day& Night: Dual IR-cut filter auto switch
Max S/N Ratio: > 39.1dB
Lens
Lens: The default 3.6mm Lens
2.8mm 3.6mm 4mm 6mm 8mm 12mm
89.7 75.7 69.9 50 38.5 26.2
0-2M 0-4M 3-6M 5-10M 10-20M 20-35M
Video
Video Standard: H.264
Dual Stream: Yes
Max.Resolution: 1280*720
Bit Rate: 32 Kbps ~ 4 Mbps
Supports CBR / VBR
Frame Rate: 50Hz: 25fps (1280 x 720) ______ 25fps (640 x 480)
60Hz: 30fps (1280 x 720) ______ 30fps (640 x 480)
Image Settings: Brightness, Saturation, Contrast, Hue adjustable
Image Process: AE, AWB, ABF, ABLC,
Digital WDR, 3D-DNR
Image Orientation: Flip and Mirror
Privacy Mask: 4 Configurable regions
Title OSD: Supports Channel name, Date
Network
Alarm Trigger: Motion Detection
Alarm Way: Email Alarm
Protocols: P2P/ DHCP/ DDNS/ PPPoE/ E-Mail/ FTP etc.
Wireless Protocol: WIFI 802.11b/g/n 150Mbps
Interface
NET: 1 * RJ45 10M / 100M ethernet interface
Power: 1 * Ø5.5 RCA interface
General
Anti-thunder Level: Standard IEC61000-4-5
Operating Conditions: -30 C ~ 60 C
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC 10%
Power Consumption: 6W
Waterproof: IP66
Housing Material: Metal
Weight: 0.5kg

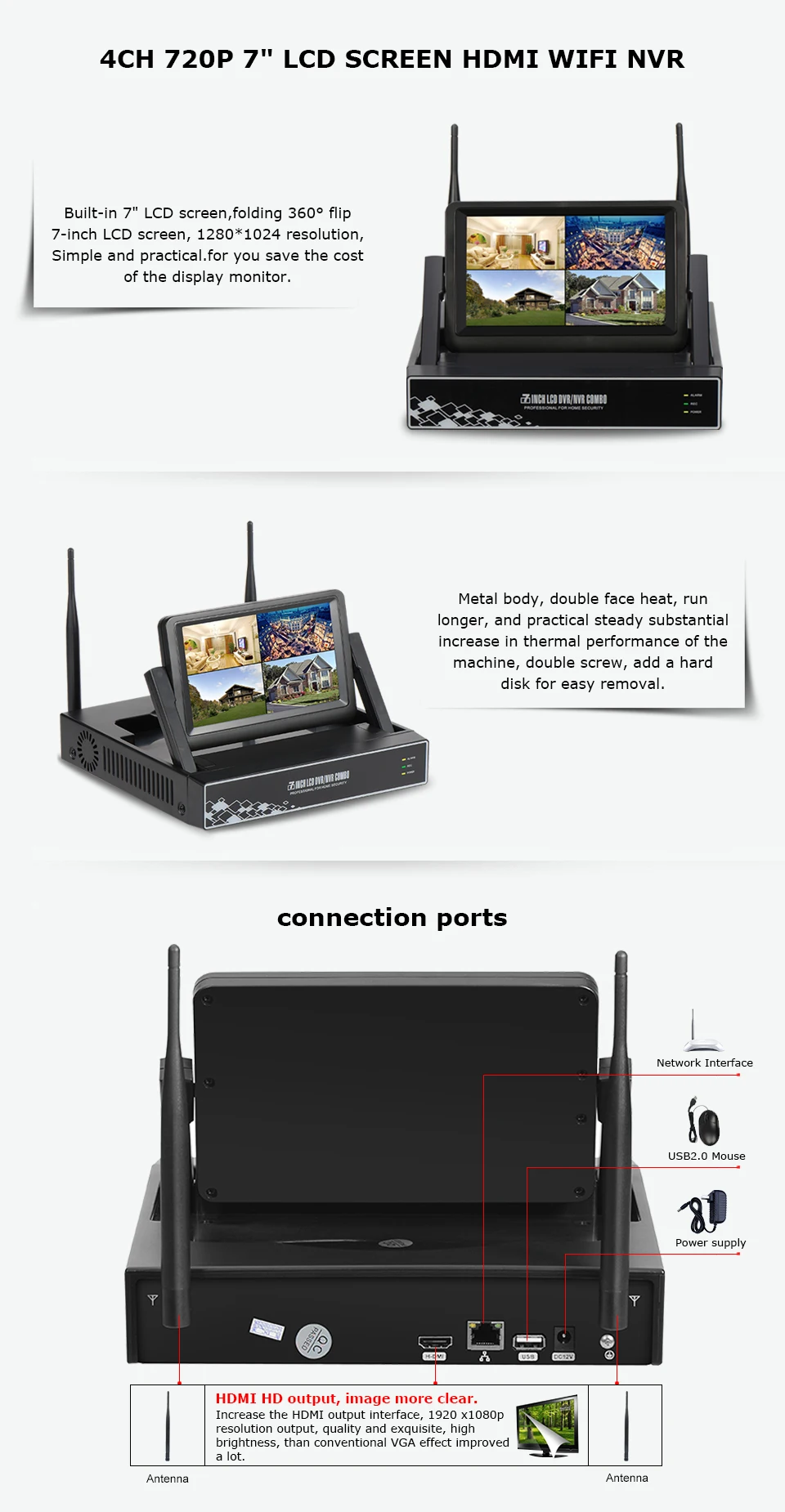

1819

System
Model: K9504L-W
Main Processor: Hisilicon 3520 + Realtek RTL8196E + RTL8182ER
Operating System: Embedded LINUX
Preview: 1/4
Control Device: USB Mouse
Video & Record
Video Compression: H.264
Video Input: 4CH * 720P
Video Output: HDMI
1024x768, 1280x1024, 1366x768
1440x900, 1920x1080
Video Mode: Manual, Time, Motion, Alarm
Playback Mode: Real time, Routine, Event
Playback: 4CH * 720P
Interface
Video Output: 1 * HDMI
Network Protocol: UPnP/ SMTP/ PPPoE/ DHCP, FTP etc
Net Interface: 1 * RJ-45
USB Interface: 1 * USB2.0 Port
Hard Disk: 1 * SATA Port ( support ?4TB )
Other
Operating Conditions: -10 °c ~ 55 °c
Humidity 95% or less (non-condensing)
Power Supply: 12V/DC 3A
Power Consumption: <10W
Size: 257mm*240mm*45mm
Weight: 1.5kg

19

ModelAR-K04W1L7-03NB
Banyaknya Kamera4
Kapasitas Channel Rekorder4 channel
Fitur Kamera KeamananIndoor & Outdoor|Wireless|Infrared Night Vision
Style Kamera SekuritiBullet
English highlights
  • HD 720P Real Time Reconding and Playback
  • IP66 Weatherproof Housing for Indoor and Outdoor use
  • WIFI NVR is easy to install plug and play
  • The WIFI range can be 30 meter away without any obstacle like walls
  • night vision distance visible up to 90feet in total darkness
  • No port forwarding is require and never worry about networking issues
  • Smartphone quick remote access anytime anywhere
  • Motion Detection Recording, Receive email alerts upon motion detection
Tipe garansiNo Warranty
